DOA K0104 SP55 Submersible 5" Heavy Duty Hydraulic Shearing Trash Pump AVAILABILITY: Approximately 6-8 Weeks
PRODUCT CODE: 142914
Trustpilot


$10,206.00

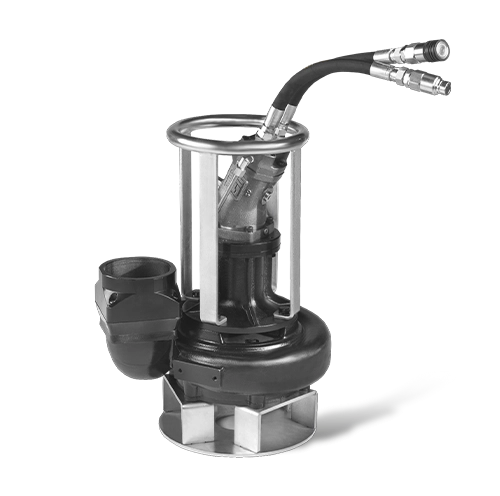

The SP55 is a powerful submersible trash pump with a hydraulic piston motor and a 5-inch discharge port, designed for pumping large volumes of both clean and dirty water.

Description

Details

The SP55 is ideal for emergency operations in civil protection, military applications, and handling large volumes of contaminated fluids. The pump has a maximum capacity of 1,450 gallons per minute, with a water head of up to 95 feet, and can handle solids up to 2.2 inches in diameter. Its specialized impeller, equipped with cutting blades, allows it to chop and pump suspended solids such as leaves, branches, algae, ropes, and large linear fibers. The hydraulic power system provides numerous safety, operational, and performance benefits that are superior to traditional priming or electric pumps. One common use is mounting the pump on an excavator arm in place of the bucket, transforming the excavator into an incredibly powerful water scoop.

Key Features:

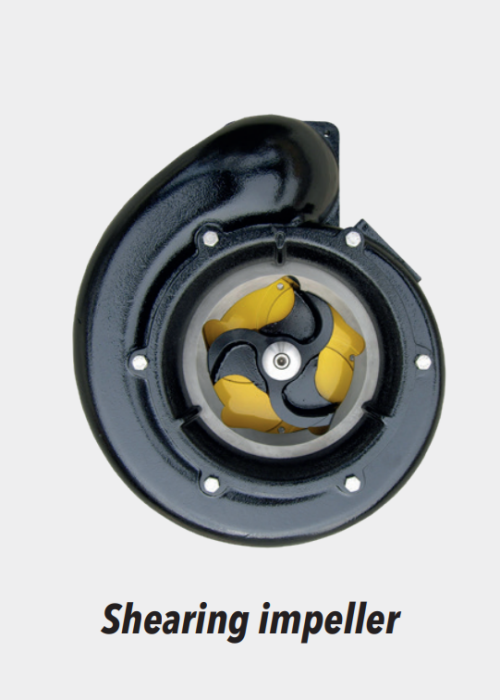

  • Pump Anything! The shearing impeller can shred and pump branches, algae, rags, ropes, bags, and solid objects up to 2.2 inches in size.
  • High Performance: Its unmatched weight-to-size-to-power ratio delivers long working life with minimal maintenance, outperforming other pump types.
  • No Electricity Required: Safe for use while standing in water near the pump, a scenario prohibited by law with electric pumps.
  • Durable Piston Engine: Ensures maximum efficiency and allows the pump to run dry without risk of damage.
  • Optional SG6 Mixer Accessory: Can liquefy dense or dry materials, making them easier to pump as more fluid substances.
Additional Information

Additional Information

SKU 142914
Weight 209
Country of Manufacture
Mfr. Model Number SP55
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
Specification Details
Discharge Mouth 5" BSP Female
Dimensions (L x H) 20 x 31 inches
Weight 209 lbs
Flow Rate 1453 gpm
Max Water Head 95 ft
Max Pumpable Solids 2.2 inches
Impeller Type Open with Shearing Effect
Pump Body Material cast iron spheroidal
Impeller Material high tensile steel
Motor Type Piston Type
Oil Flow 13 - 26 gpm
Ideal Oil Flow 20 gpm
Oil Pressure 2175 - 5075 psi
Max Backpressure 250 psi
