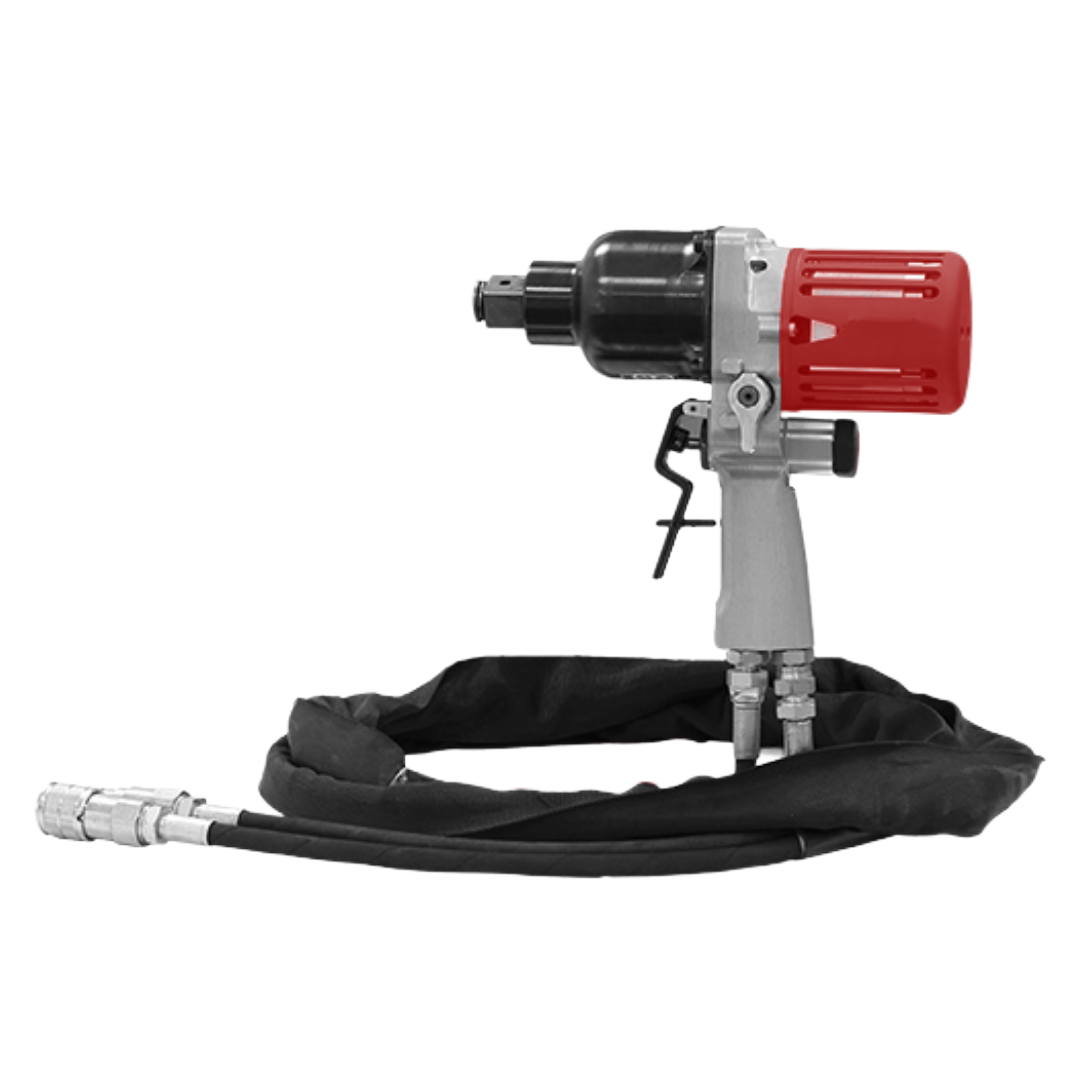

Joint Zone K0554 DHW501 Hydraulic 1" Impact Wrench (3687 ft. lbs) (U/W Capable)
- Description
-
Details
Suitable for mechanical and industrial workshops, infrastructure and railway projects, oil & gas, mining, and cold environments where no air supply is available.
Key Features:
- 3-jaw hammer mechanism
- Motor cover designed for heat dissipation
- Reversible rotation feature
- Handle made entirely from Ergal
- Ergonomic handle with integrated oil flow system
- Mechanical trigger with safety lever
- Additional Information
-
Additional Information
SKU 142909 Weight 19 Country of Manufacture Mfr. Model Number DHW501 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications DRIVE 1 in Square Drive MAX TORQUE 3687 ft lb (5000 Nm) FREE SPEED 1700 rpm HYDRAULIC FLOW RANGE 5-8 gpm (20-30 lpm) WEIGHT 19 lb (8.8 kg) LENGTH 12.7 (324 mm) MAXIMUM PRESSURE 2500 psi (172 bar) MAXIMUM BACK PRESSURE 250 psi (17 bar) Free Shipping No
