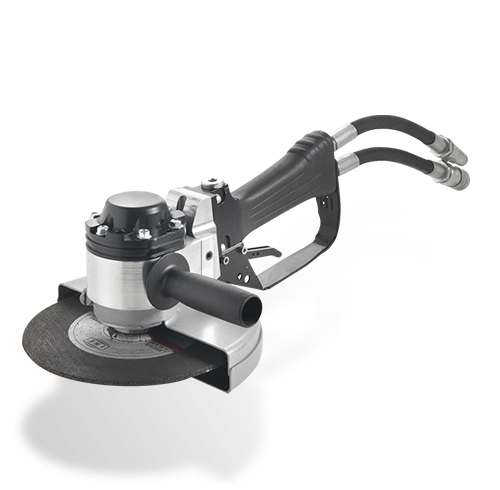

The DOA AS23 is a compact high speed angular grinder / cut off saw with great reliability.
- Description
-
Details
The DOA AS23 is a compact high speed angular grinder / cut off saw with great reliability.
The AS23 is irreplaceable in difficult environments both topside and underwater, for the maintenance of utility networks, and metal brushing for preparation of welding.
Mounts standard discs with 9” diameter (230mm) or metal brushes for scrubbing or cleaning ship hulls and propellers from marine formations.
With a cutting disc, the AS23 becomes a precise cut off saw whose light weight and maneuverability allows complete rotation around large pipes easing the cut in narrow spaces.
ADDITIONAL FEATURES
- Advanced design minimizes the number of moving parts. Internal mechanism is always bathed in oil to assure constant lubrication and long operative life.
- High tolerance to back pressure allows the use of long oil hoses.
- Two position side handle.
- Additional Information
-
Additional Information
SKU 142896-0010 Weight 11 Country of Manufacture Italy Mfr. Model Number AS23 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications DRIVE 7/8" (22mm) Spindle SYSTEM Open Center HYDRAULIC FLOW 5-8 gpm WEIGHT 11 lb (5 kg) Dimensions 12.5 x 10 in (32 x25 cm) Land Speed 5500 rpm @ 8 gpm Underwater Speed 2200 rpm @ 8 gpm MAXIMUM PRESSURE 2000 psi (138 bar) MAXIMUM BACK PRESSURE 250 psi (17 bar) Free Shipping No
