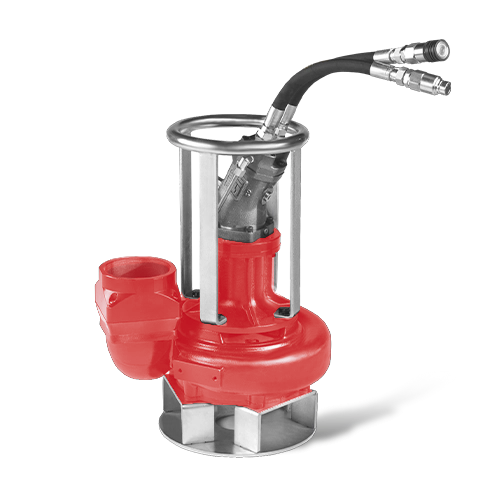

Joint Zone K0227 SP65 Submersible 6" Heavy Duty Hydraulic Shearing Trash Pump AVAILABILITY:
PRODUCT CODE: 142916
Trustpilot


$15,539.00

The SP65 is a powerful submersible trash pump designed for sewage and dirty water, equipped with a hydraulic piston motor and a 6-inch discharge port.

Description

Details

The SP65 is ideal for pumping both clear and contaminated water, emergency response operations in civil defense, military applications, and handling large volumes of loaded fluids. It has a maximum capacity of 2,113 gallons per minute, with a head up to 128 feet, and can pump solids up to 2.56 inches in size. The specially designed impeller with cutting blades allows it to cut and pump suspended solids such as leaves, branches, rags, algae, ropes, or large linear fibers. Hydraulic operation provides a range of safety, operational, and performance benefits not achievable with traditional priming or electric pumps. A typical application includes mounting the pump on excavator arms in place of the bucket, transforming excavators into highly efficient water pumps.

Key Features:

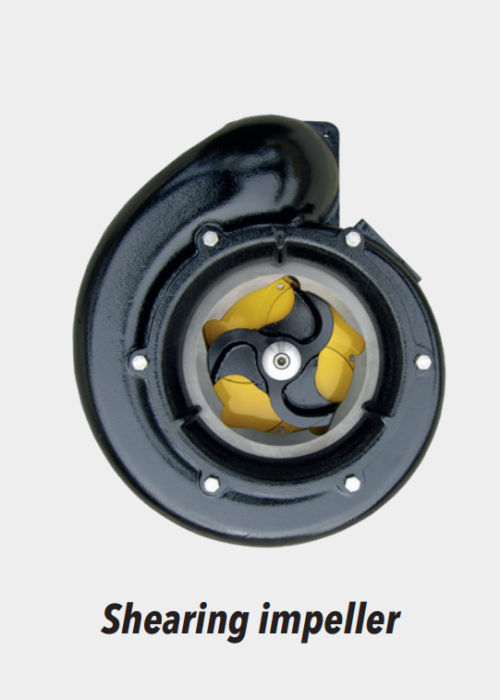

  • Pump Anything! The shearing impeller can shred and pump branches, algae, rags, ropes, bags, and solid objects up to 2.56 inches in size.
  • High Performance: Its unmatched weight-to-size-to-power ratio delivers long working life with minimal maintenance, outperforming other pump types.
  • No Electricity Required: Safe for use while standing in water near the pump, a scenario prohibited by law with electric pumps.
  • Durable Piston Engine: Ensures maximum efficiency and allows the pump to run dry without risk of damage.
  • Optional SG6 Mixer Accessory: Can liquefy dense or dry materials, making them easier to pump as more fluid substances.
Additional Information

Additional Information

SKU 142916
Weight 298
Country of Manufacture
Mfr. Model Number SP65
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
Specification Details
Discharge Mouth 6" BSP Female
Dimensions (L x H) 22 x 35 inches
Weight 298 lbs
Flow Rate 2113 gpm
Max Water Head 128 ft
Max Pumpable Solids 2.56 inches
Impeller Type Open with Shearing Effect
Pump Body Material cast iron spheroidal
Impeller Material high tensile steel
Motor Type Piston Type
Oil Flow 16 - 26 gpm
Ideal Oil Flow 21 gpm
Oil Pressure 2175 - 5075 psi
Max Backpressure 250 psi
