Joint Zone K0495 Scorpion Micro Power Pack (5gpm) w/ 50' Hose Set AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 143290
Trustpilot


$4,758.60

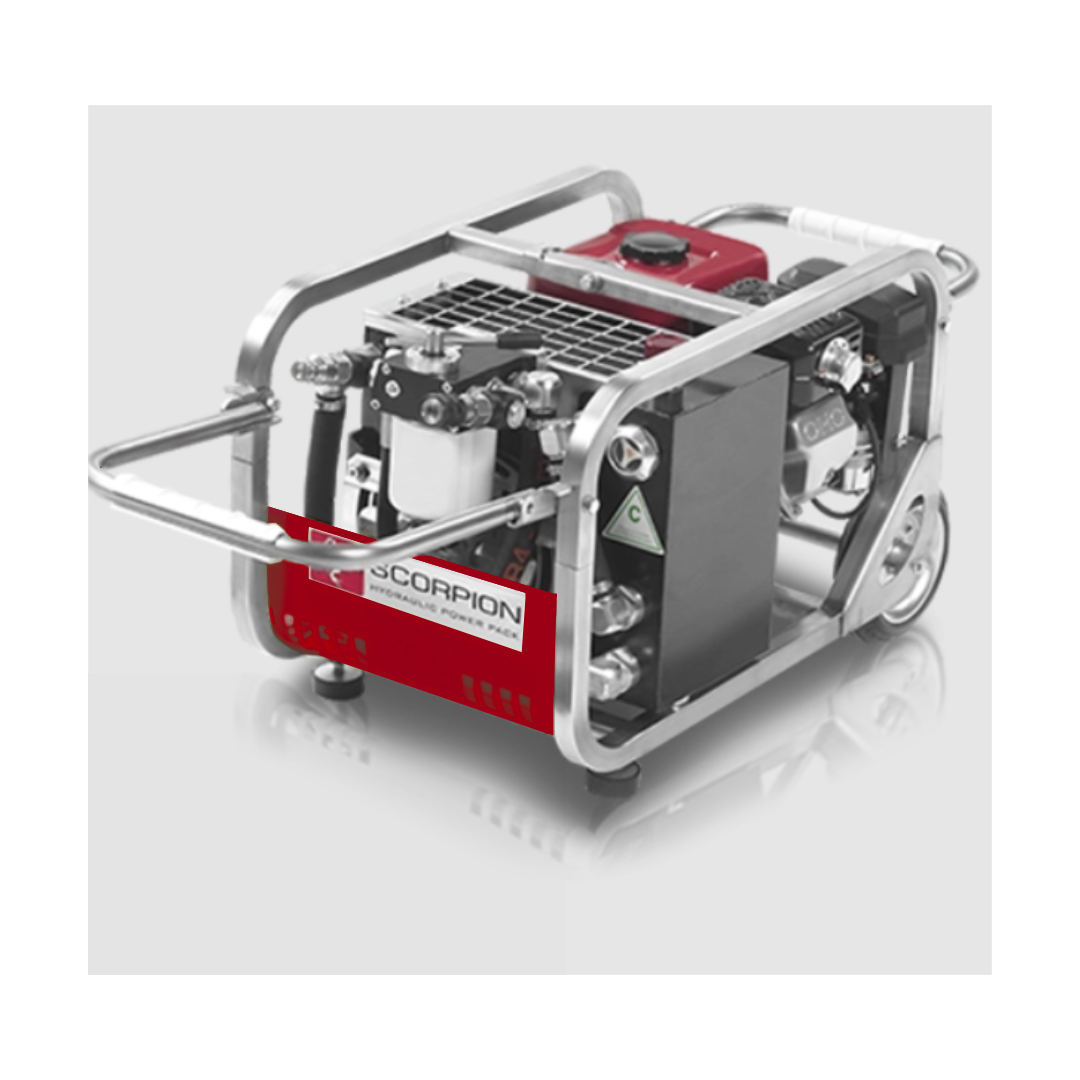

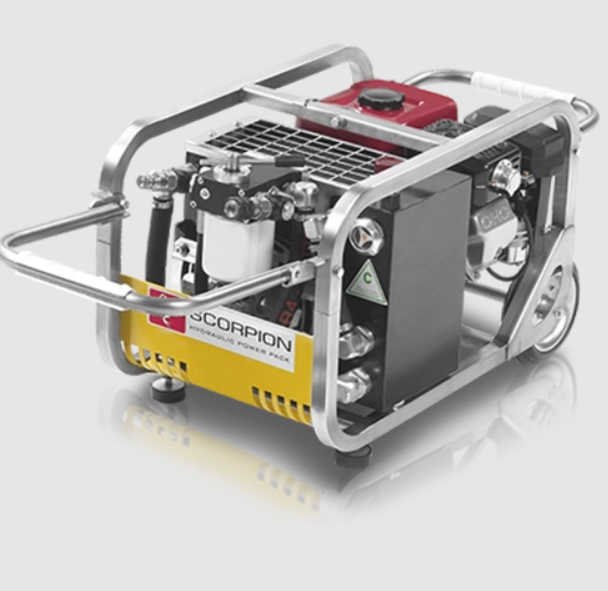

The Scorpion Micro Power Pack is a compact, portable hydraulic power unit driven by a 6 hp gasoline engine. Designed with a stainless-steel frame, anti-vibration mounts, and quick-connect fittings, it delivers reliable hydraulic performance for field utility work and general tool operation. Producing up to 5 GPM at 1,380 PSI, it offers strong output in a lightweight 92 lb package.

Description

Details

The Scorpion Micro Power Pack is a rugged and transport-ready hydraulic power solution engineered for demanding field applications. Powered by a 6 horsepower Briggs & Stratton gasoline engine, this unit combines durability, high output performance, and ease of handling.

Constructed with a stainless-steel frame and equipped with anti-vibration shock mounts, the Scorpion is designed for stable operation and long service life. Its quick couplers with impact-free swivel fittings allow fast, hassle-free tool changes, while the high-efficiency oil cooling system with a centrifugal fan ensures consistent hydraulic temperature control even in extended use. A central lifting hook provides convenient hoisting and positioning on job sites.


Weighing only 92.6 lb, the compact design enhances mobility, and the manual recoil start provides simplicity and dependability. Its size—23.6 × 15.7 × 16.9 inches—makes it easy to transport and store. The included hydraulic hose capacity of 23 feet offers flexibility in tight or complex work environments.

Ideal for utility maintenance, hydraulic tool operation, construction tasks, and any job requiring portable hydraulic power, the Scorpion provides dependable performance in a durable, compact form factor. Additional hydraulic power configurations are available upon request.

Additional Information

Additional Information

SKU 143290
Weight 92
Country of Manufacture
Mfr. Model Number K0495
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
Category Specification
Weight92 lb
Dimensions (L × W × H)27.5 × 19.6 × 22.4 in
Hydraulic Flow5 GPM @ 1400 PSI
Max Pressure1400 PSI
EngineBriggs & Stratton 9 hp – gasoline
StarterRecoil
AccelerationManual
Hose Length50 ft
FrameStainless steel
MountingAnti-vibration shock-mounted components
Oil CoolingHigh-efficiency centrifugal fan system
Quick CouplersImpact-free swivel quick couplers
LiftingCentral lifting hook
