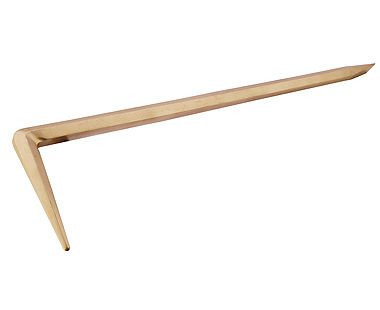

The CS Unitec EX1302 Angle Tracing Point is designed for use in hazardous and sensitive environments where non-sparking, non-magnetic, and corrosion-resistant tools are required. Ideal for marking, scribing, and layout work, it provides safe and precise performance in industrial and controlled applications.
- Description
-
Details
- Designed for use in hazardous and controlled environments where standard tools are not suitable
- Non-sparking construction helps reduce ignition risk in explosive atmospheres such as petrochemical and grain handling operations
- Non-magnetic material allows for safe use around sensitive equipment including MRI, NMR, and electronic systems
- Angle tracing point design is ideal for marking, scribing, and layout work on metal and other materials
- Provides precision marking for fabrication, alignment, and measurement tasks
- Corrosion-resistant construction ensures durability in marine environments, shipyards, desalination plants, and chemical processing facilities
- Manufactured under ISO 9001:2015 certified processes for consistent quality and reliability
- Built with TUV-certified materials to meet strict safety and performance standards
- Backed by a lifetime warranty for long-term dependability
Common Applications:
- Petrochemical and refinery operations
- Explosive dust environments such as grain production
- Utility and hazmat work zones
- MRI, NMR, and sensitive equipment environments
- Nuclear and electronics manufacturing
- Marine, shipyard, and desalination operations
- Metal fabrication and layout work
- Precision marking and alignment tasks
Alloy Options:
Property Aluminum-Bronze (AlBr) Copper-Beryllium (CuBe2) Zone Compatibility Complies with ATEX Directive 1999/92/EC for Zones 0, 1, 2, 20, 21, 22, M1 & M2 Complies with ATEX Directive 1999/92/EC for Zones 0, 1, 2, 20, 21, 22, M1 & M2 Hardness 27 HRC 38 HRC Durability Not as durable as CuBe Very durable due to high hardness and tensile strength Magnetic Properties Low magnetism due to minimal ferrous components; suitable for non-critical non-magnetic applications Non-ferrous composition; ideal for applications requiring non-magnetic properties Composition Al: 10.3%
Fe: 4.5%
Ni: 4.5%
Other: 0.5%
Cu: BalanceBe: 1.9%
Co + Ni: 0.4%
Other: 0.5%
Cu: Balance - Additional Information
-
Additional Information
SKU 143589 Weight 2 Country of Manufacture Mfr. Model Number EX1302-300B Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No
