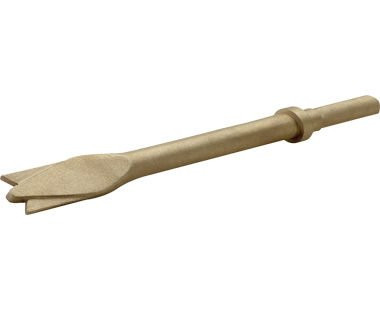

CS Unitec Ex309AH-20B 13/16" Pneumatic Chisel CuBe AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 144078
Trustpilot


$82.00

The CS Unitec Pneumatic Chisel – EX309AH Series is a non-sparking, non-magnetic, and corrosion-resistant tool designed for safe use in hazardous environments. Manufactured from specialized alloys under ISO 9001:2015 certified processes with TÜV-certified materials, it provides reliable performance and is backed by a lifetime warranty.

Description

Details

The CS Unitec Pneumatic Chisel – EX309AH Series is a professional-grade safety tool engineered for use in hazardous and sensitive industrial environments where the risk of ignition must be minimized. As part of CS Unitec’s non-sparking and non-magnetic safety tool line, this pneumatic chisel is ideal for applications in petrochemical facilities, grain processing operations with explosive dust, utilities, and other high-risk environments.

Manufactured from specialized non-ferrous alloys, the EX309AH Series offers both non-sparking and non-magnetic properties, allowing for safe operation around sensitive equipment such as MRI/NMR systems, nuclear applications, and electronic manufacturing environments. Its corrosion-resistant construction ensures dependable performance in harsh conditions, including marine, chemical, and industrial settings.

Designed for cutting, shaping, and removing materials, the pneumatic chisel is suitable for a wide range of industrial tasks. It is available in aluminum bronze and copper beryllium alloys and features a .401 round shank configuration to accommodate various applications.

Produced under ISO 9001:2015 certified manufacturing processes using TÜV-certified materials, the EX309AH Series meets strict quality and safety standards. Built for durability with high hardness and tensile strength, each tool is backed by a lifetime warranty, ensuring long-term reliability in demanding environments.

Property Aluminum-Bronze (AlBr) Alloy Copper-Beryllium (CuBe2) Alloy
Zone Compatibility Complies with ATEX Directive 1999/92/EC for Zones 0, 1, 2, 20, 21, 22, M1 & M2 Complies with ATEX Directive 1999/92/EC for Zones 0, 1, 2, 20, 21, 22, M1 & M2
Hardness 27 HRC 38 HRC
Durability Not as durable as CuBe Very durable due to high hardness and tensile strength
Magnetic Properties Low magnetism due to minimal ferrous components; suitable for non-critical non-magnetic applications Non-ferrous composition; ideal for applications requiring non-magnetic properties
Composition Al: 10.3%
Fe: 4.5%
Ni: 4.5%
Other: 0.5%
Cu: Balance
Be: 1.9%
Co + Ni: 0.4%
Other: 0.5%
Cu: Balance
Additional Information

Additional Information

SKU 144078
Weight 1
Country of Manufacture
Mfr. Model Number Ex309AH-20B
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications No
Free Shipping No
