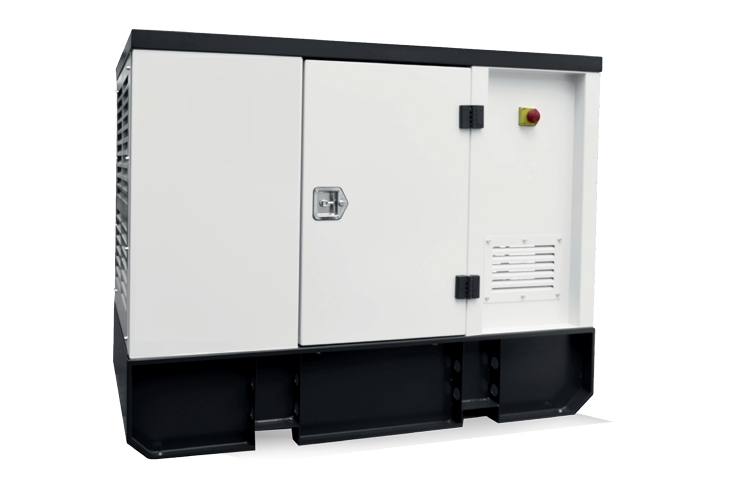

Joint Zone Lotus 56HP Hydraulic Power Unit (Customizable) Product Guide

How This Power Unit Fits Into A Hydraulic Tool Package

The Joint Zone Lotus 56HP Hydraulic Power Unit is a diesel-powered system delivering adjustable hydraulic flow from 1.3 to 25 gallons per minute at a maximum pressure of 2800 PSI, suitable for connected hydraulic tools requiring variable flow and load sensing. Its axial piston pump with variable displacement accommodates a range of hydraulic applications by allowing flow adjustment while maintaining system pressure.

This power unit supports jobs where or high-demand hydraulic supply is necessary, with its load-sensing control and dual cooling radiators helping to manage heat during longer jobs. Compared to smaller electric or gasoline hydraulic power units, this diesel model is designed for outdoor or ventilated environments given its engine exhaust considerations. It is more suitable for projects requiring longer operating periods or higher hydraulic horsepower.

Power Unit Planning Notes

Given its 56 hp Tier 4 Final Kohler diesel engine, plan for outdoor placement or ventilated locations where the engine exhaust can be positioned away from the immediate work face. Position the unit so the muffler and exhaust avoid proximity to heat-sensitive equipment or surfaces such as fiberglass or coatings.

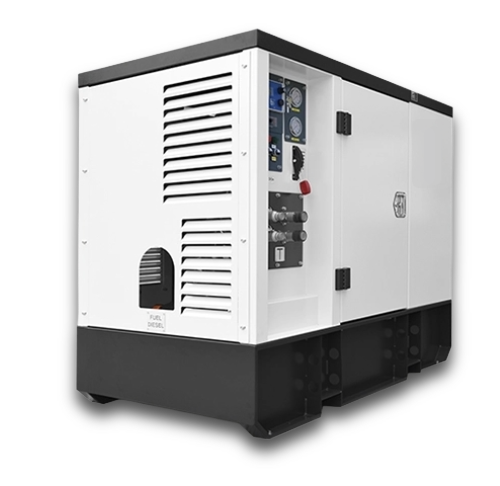

The unit’s frame includes forklift pockets and a central lifting hook for maneuvering via forklift or crane, which should be planned to confirm access and handling during delivery and setup. As the power unit ships by freight on a pallet, arrangements may be needed for loading dock access, forklift or liftgate use at site delivery.

Hydraulic hose routing requires attention due to the variable flow setting and dual hydraulic circuits; verify hose length, routing, and the compatibility of the 3/4" quick couplers to match connected tools. For very long hose runs, consider potential friction loss and whether larger diameter hoses or flow adjustments are necessary to maintain hydraulic pressure at the tool.

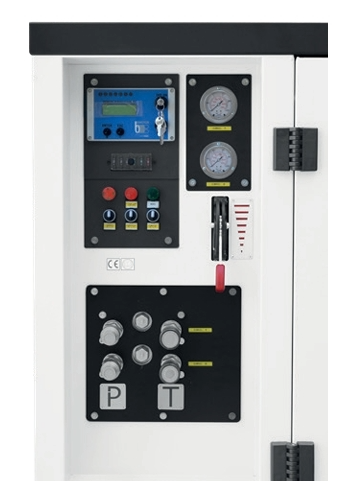

Hydraulic oil return lines include inline filters and pressureless drain lines routed to the tank to support fluid cleanliness and return flow. The dual-circuit pressure monitoring gauges and digital flow meter on Circuit A support on-site adjustment and monitoring without repeated shutdowns.

With a 25-gallon fuel tank supporting up to 8 hours of runtime at 75% load, fuel availability and refueling access should be part of jobsite logistics. Battery disconnect and electric start features allow for convenient storage and rapid startup. For projects near water, underwater hydraulic tools may be supported if flow, pressure, and coupler types match the tools; however, verify hydraulic fluid requirements per location rules since the unit does not specify support for biodegradable or specialized hydraulic oils.
